Basic GUI with OpenCV

In this article, we are going to create a basic user interface with OpenCV. The OpenCV user interface allows us to create windows, add images to it, and move, resize, and destroy it. The user interface is in OpenCV's highui module. In the following code, we are going to learn how to create and show two images by pressing a key to display multiple windows with the image moving in the window on our desktop.

Don't worry about reading the full code; we are going to explain it in small chunks:

#include <iostream>
#include <string>
#include <sstream>
using namespace std;

// OpenCV includes
#include <opencv2/core.hpp>
#include <opencv2/highgui.hpp>
using namespace cv;

int main(int argc, const char** argv)
{
   // Read images
   Mat lena= imread("../lena.jpg");
   # Checking if Lena image has been loaded
   if (!lena.data) {
 cout << "Lena image missing!" << enld;
 return -1;
   }
   Mat photo= imread("../photo.jpg");
   # Checking if Lena image has been loaded
if (!photo.data) {
 cout << "Lena image missing!" << enld;
 return -1;
 }

   // Create windows
   namedWindow("Lena", WINDOW_NORMAL);
   namedWindow("Photo", WINDOW_AUTOSIZE);

   // Move window
   moveWindow("Lena", 10, 10);
   moveWindow("Photo", 520, 10);

   // show images
   imshow("Lena", lena);
   imshow("Photo", photo);

   // Resize window, only non autosize
   resizeWindow("Lena", 512, 512);

   // wait for any key press
   waitKey(0);

   // Destroy the windows
   destroyWindow("Lena");
   destroyWindow("Photo");

   // Create 10 windows
   for(int i =0; i< 10; i++)
   {
         ostringstream ss;
         ss << "Photo" << i;
         namedWindow(ss.str());
         moveWindow(ss.str(), 20*i, 20*i);
         imshow(ss.str(), photo);
   }

   waitKey(0);
   // Destroy all windows
   destroyAllWindows();
   return 0;
}

Let's understand the code:

1. The first task we have to do in order to facilitate a graphical user interface is to import OpenCV's highui module:

#include <opencv2/highgui.hpp>

2. Now that we are prepared to create our new windows, we have to load some images:

// Read images
Mat lena= imread("../lena.jpg");
Mat photo= imread("../photo.jpg");

3. To create the windows, we use the namedWindow function. This function has two parameters; the first is a constant string with the window's name, and the second is the flags that we require. This second parameter is optional:

namedWindow("Lena", WINDOW_NORMAL);
namedWindow("Photo", WINDOW_AUTOSIZE);

4. In our case, we create two windows: the first is called Lena, and the second is called Photo.

There are three flags by default for Qt and native:
• WINDOW_NORMAL: This flag allows the user to resize the window
• WINDOW_AUTOSIZE: If this flag is set, the window size is automatically adjusted to fit the display image and it is not possible to resize the window
• WINDOW_OPENGL: This flag enables the OpenGL support

Qt has a number of additional flags:
• WINDOW_FREERATIO or WINDOW_KEEPRATIO: If WINDOW_FREERATIO is set, the image is adjusted with no respect for its ratio. If WINDOW_FREERATIO is set, the image is adjusted with respect to its ratio.
• WINDOW_GUI_NORMAL or WINDOW_GUI_EXPANDED: The first flag facilitates a basic interface without the status bar and the toolbar. The second flag facilitates the most advanced graphical user interface, with the status bar and the toolbar.

Note
If we compile OpenCV with Qt, all the windows that we create are, by default, in the expanded interface, but we can use native interfaces and more basic ones adding the CV_GUI_NORMAL flag. By default, the flags are WINDOW_AUTOSIZE, WINDOW_KEEPRATIO, and WINDOW_GUI_EXPANDED.

5. When we create multiple windows, they are superimposed, but we can move the windows to any area of our desktop using the moveWindow function, as follows:

// Move window
moveWindow("Lena", 10, 10);
moveWindow("Photo", 520, 10);

6. In our code, we move the Lena window 10 pixels to the left, and 10 pixels up, and the Photo window 520 pixels to the left, and 10 pixels up:

// show images
imshow("Lena", lena);
imshow("Photo", photo);
// Resize window, only non autosize
resizeWindow("Lena", 512, 512);

7. After showing the images that we loaded previously using the imshow function, we resize the Lena window to 512 pixels, calling the resizeWindow function. This function has three parameters: the window name, width, and height.

**Note**
The specific window size is for the image area. Toolbars are not counted. Only windows without the WINDOW_AUTOSIZE flag enabled can be resized.

8. After waiting for a key press with the waitKey function, we are going to remove or delete our windows using the destroyWindow function, where the name of the window is the only parameter required:

waitKey(0);

// Destroy the windows
destroyWindow("Lena");
destroyWindow("Photo");

9. OpenCV has a function to remove all windows that we create in only one call. The function is called destroyAllWindows. To demonstrate how this works, we create 10 windows in our sample and await a key press. When the user presses any key, it destroys all the windows:

 // Create 10 windows
for(int i =0; i< 10; i++)
{
   ostringstream ss;
   ss << "Photo" << i;
   namedWindow(ss.str());
   moveWindow(ss.str(), 20*i, 20*i);
   imshow(ss.str(), photo);
}

waitKey(0);
// Destroy all windows
destroyAllWindows();

In any event, OpenCV handles the destruction of all windows automatically when the application is terminated, and it is not necessary to call this function at the end of our application.

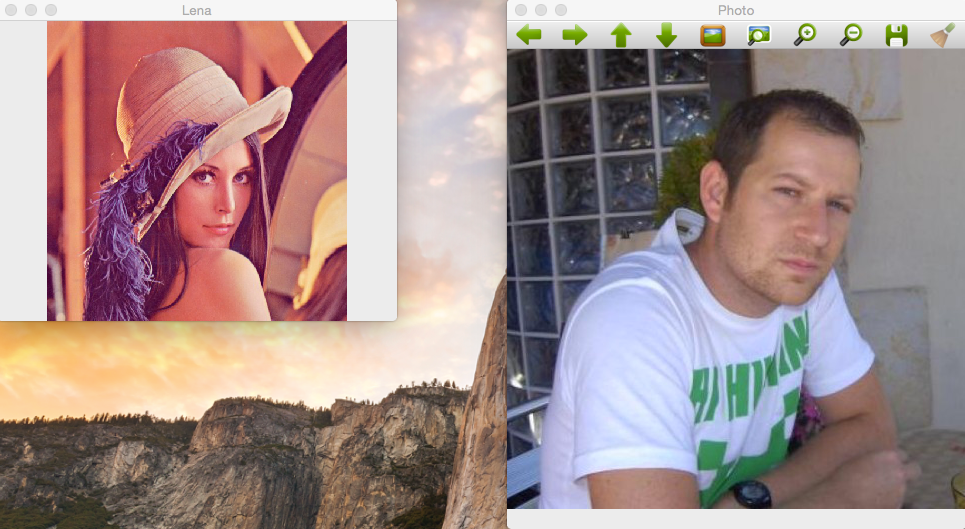

The result of all this code can be seen in the following images across two steps. First, it shows two windows:

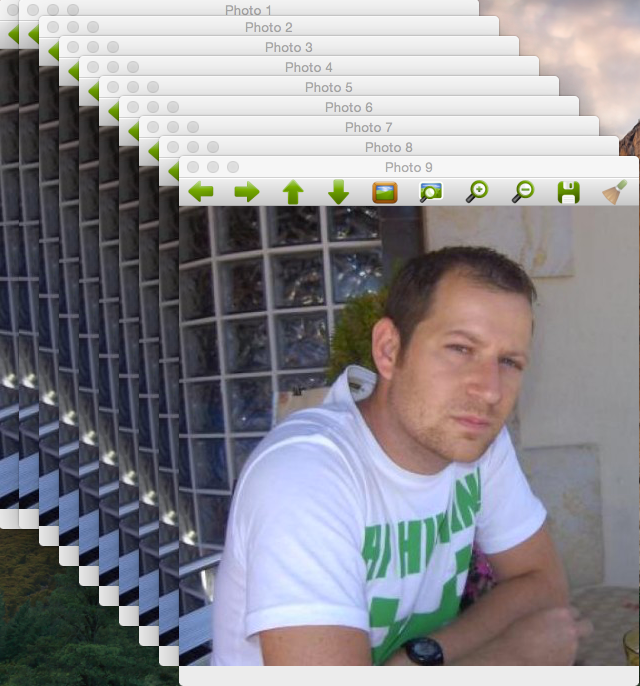

After pressing any key, the application continues and draws several windows changing their positions:

With a few lines of code, we are able to create and manipulate windows and show images. We are now ready to facilitate user interaction with images and add user interface controls.

Adding slider and mouse events to our interfaces

Mouse events and slider control are very useful in computer vision and OpenCV. Using these control users, we can interact directly with the interface and change the properties of the input images or variables. In this section, we are going to introduce the mouse events and slider controls for basic interactions. To facilitate proper understanding, we have created the following code, by means of which we are going to paint green circles in an image, using mouse events, and blur the image with the slider:

// Create a variable to save the position value in track
int blurAmount=15;

// Trackbar call back function
static void onChange(int pos, void* userInput);

//Mouse callback
static void onMouse(int event, int x, int y, int, void* userInput);

int main(int argc, const char** argv)
{
   // Read images
   Mat lena= imread("../lena.jpg");

   // Create windows
   namedWindow("Lena");

   // create a trackbar
   createTrackbar("Lena", "Lena", &blurAmount, 30, onChange, &lena);

   setMouseCallback("Lena", onMouse, &lena);

   // Call to onChange to init
   onChange(blurAmount, &lena);

   // wait app for a key to exit
   waitKey(0);

   // Destroy the windows
   destroyWindow("Lena");

   return 0;
}

Let's understand the code!

First, we create a variable to save the slider position. We need to save the slider position for access from other functions:

// Create a variable to save the position value in track
int blurAmount=15;

Now, we define our callbacks for our slider and mouse event, required for the OpenCV functions setMouseCallback and createTrackbar:

// Trackbar call back function
static void onChange(int pos, void* userInput);

//Mouse callback
static void onMouse(int event, int x, int y, int, void* userInput);

In the main function, we load an image and create a new window called Lena:

int main(int argc, const char** argv)
{
   // Read images
   Mat lena= imread("../lena.jpg");

   // Create windows
   namedWindow("Lena");

Now is the time to create the slider. OpenCV has the createTrackbar function to generate a slider with the following parameters in order:

1. Trackbar name.
2. Window name.
3. Integer pointer to use as a value; this parameter is optional. If it is set, the slider attains this position when created.
4. Maximum position on slider.
5. Callback function when the position of the slider changes.
6. User data to send to callback. It can be used to send data to callbacks without using global variables.

To this code, we add trackbar for the Lena window and call the Lena trackbar too in order to blur the image. The value of the trackbar is stored in the blurAmount integer that we pass as a pointer and set the maximum value of the bar to 30. We set up onChange as a callback function and send the lena mat image as user data:

   // create a trackbar
   createTrackbar("Lena", "Lena", &blurAmount, 30, onChange, &lena);

After creating the slider, we add the mouse events to paint circles when a user clicks the left button on the mouse. OpenCV has the setMouseCallback function. This function has three parameters:

• A window name where we get mouse events.
• A callback function to call when there is any mouse interaction.
• User data: this is any data that will be sent to the callback function when it's fired. In our example, we'll send the entire Lena image.

Using the following code, we can add a mouse callback to the Lena window and set up onMouse as a callback function, passing the lena mat image as user data:

setMouseCallback("Lena", onMouse, &lena);

To finalize the main function only, we need to initialize the image with the same parameter as the slider. To carry out the initialization, we only need to call the onChange callback function and wait for events before closing the windows with destroyWindow, as can be seen in the following code:

// Call to onChange to init
onChange(blurAmount, &lena);

// wait app for a key to exit
waitKey(0);

// Destroy the windows
destroyWindow("Lena");

The slider callback applies a basic blur filter to the image using the slider value as a blur quantity:

// Trackbar call back function
static void onChange(int pos, void* userData) {
    if(pos <= 0) return;
    // Aux variable for result
    Mat imgBlur;
    // Get the pointer input image
    Mat* img= (Mat*)userInput;
    // Apply a blur filter
    blur(*img, imgBlur, Size(pos, pos));
    // Show the result
    imshow("Lena", imgBlur);
}

This function checks whether the slider value is 0 using the variable pos. In this case, we do not apply the filter because it generates a bad execution. We cannot apply a 0 pixel blur either. After checking the slider value, we create an empty matrix called imgBlur to store the blur result. To retrieve the image sent through user data in the callback function, we have to cast void* userData to the correct image type pointer Mat*.

Now we have the correct variables to apply the blur filter. The blur function applies a basic median filter to an input image, *img in our case; to an output image, the last required parameter is the size of the blur kernel (a kernel is a small matrix used to calculate the means of convolution between the kernel and the image) that we want to apply. In our case, we are using a squared kernel of pos size. Finally, we only need to update the image interface using the imshow function.

The mouse events callback has five input parameters: the first parameter defines the event type; the second and third define the mouse position; the fourth parameter defines the wheel movement; and the fifth parameter defines the user input data.

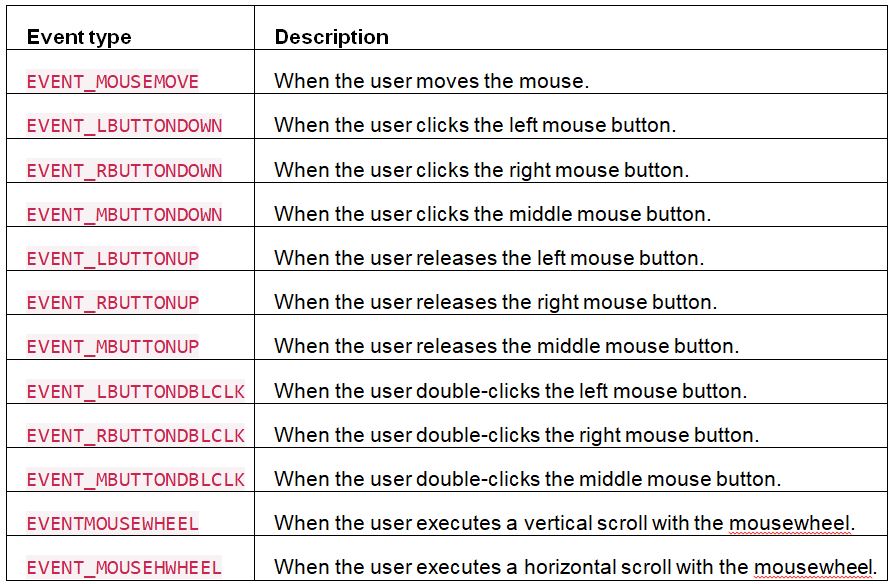

The mouse event types are as follows:

In our sample, we only manage events that result from a left-click of the mouse, and any event other than EVENT_LBUTTONDOWN is discarded. After discarding other events, we obtain the input image like that with the slider callback, and with a circle in the image using the circle OpenCV function:

//Mouse callback
static void onMouse(int event, int x, int y, int, void* userInput)
{
   if(event != EVENT_LBUTTONDOWN)
           return;

   // Get the pointer input image
   Mat* img= (Mat*)userInput;

   // Draw circle
   circle(*img, Point(x, y), 10, Scalar(0,255,0), 3);

   // Call on change to get blurred image
   onChange(blurAmount, img);

}
