UI Implementation - Popup
Popup is not the best choice to notify users. It takes the users’ attention, and need action to remove popup. Sometimes, popup is a good selection. It displays on the same view, not change eyesight.
Today, I will implement a popup, inspired by the design of Joseph Liu. Change something to make it simpler.

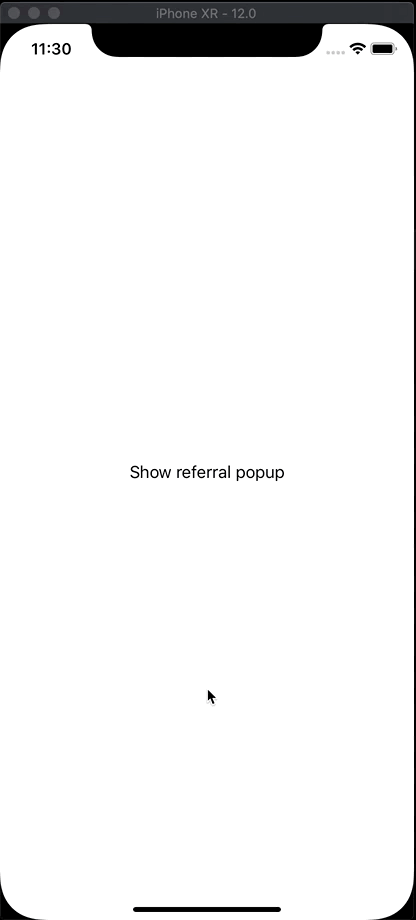

This is how it looks after coding.
Prepare project
- Create new
Single View App
project - Add new file
ReferralPopup.swift
Define components
class ReferralPopup: knView {
let blackView: UIButton = {
let button = UIButton()
button.translatesAutoresizingMaskIntoConstraints = false
button.backgroundColor = UIColor.black.withAlphaComponent(0.5)
return button
}()
let container: UIView = {
let v = UIView()
v.translatesAutoresizingMaskIntoConstraints = false
v.backgroundColor = .white
v.createRoundCorner(7)
return v
}()
let okButton: UIButton = {
let button = UIButton()
button.translatesAutoresizingMaskIntoConstraints = false
let color = UIColor.color(r: 241, g: 66, b: 70)
button.backgroundColor = color
button.setTitle("COPY & CONTINUE", for: .normal)
button.backgroundColor = UIColor.color(r: 71, g: 204, b: 54)
button.height(54)
button.createRoundCorner(27)
return button
}()
}
-
blackView
is the transparent background cover the whole screen. We will dismiss the popup when it clicked. You can use UIView and add UIGestureRecognizer also. -
container
is the white background container. It’s the main view for popup.
Layout the container
The most important part is how to layout the container
override func setupView() {
let color = UIColor.color(r: 241, g: 66, b: 70)
let instruction = "GET YOUR FREE $10 CREDITS"
let label = UIMaker.makeLabel(text: instruction,
font: UIFont.boldSystemFont(ofSize: 15),
color: .white,
alignment: .center)
let circle = UIMaker.makeView(background: color)
let logo = UIMaker.makeImageView(image: UIImage(named: "swift"), contentMode: .scaleAspectFit)
logo.backgroundColor = .white
let codeTitle = UIMaker.makeLabel(text: "REFERRAL CODE",
font: UIFont.boldSystemFont(ofSize: 12),
color: UIColor.color(r: 155, g: 165, b: 172),
alignment: .center)
let codeLabel = UIMaker.makeLabel(text: "KYNGUYEN",
font: UIFont.boldSystemFont(ofSize: 40),
color: UIColor.color(r: 242, g: 64, b: 65),
alignment: .center)
container.addSubviews(views: circle, label, okButton, logo, codeTitle, codeLabel)
// (1)
label.top(toView: container, space: 24)
label.horizontal(toView: container, space: 24)
// (2)
let edge: CGFloat = UIScreen.main.bounds.width * 2
circle.square(edge: edge)
circle.createRoundCorner(edge / 2)
circle.centerX(toView: container)
circle.bottom(toAnchor: logo.centerYAnchor)
// (3)
let logoEdge: CGFloat = 66
logo.square(edge: logoEdge)
logo.centerX(toView: circle)
logo.verticalSpacing(toView: label, space: 40)
logo.createRoundCorner(logoEdge / 2)
logo.createBorder(1, color: color)
// (4)
codeTitle.centerX(toView: container)
codeTitle.verticalSpacing(toView: logo, space: 24)
// (5)
codeLabel.centerX(toView: container)
codeLabel.verticalSpacing(toView: codeTitle, space: 8)
// (6)
okButton.verticalSpacing(toView: codeLabel, space: 24)
okButton.bottom(toView: container, space: -24)
okButton.horizontal(toView: container, space: 36)
okButton.createRoundCorner(28)
okButton.addTarget(self, action: #selector(dismiss), for: .touchUpInside)
blackView.addTarget(self, action: #selector(dismiss), for: .touchUpInside)
}

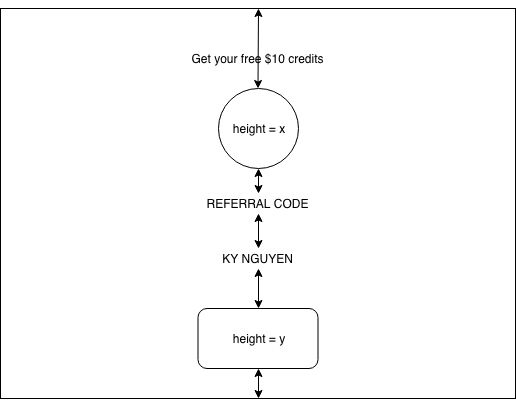

The sketch is like this
(1)
label
is the instruction label, created by my helperUIMaker
. It is sticked to thecontainer's topAnchor
with 24px spacing. It should be sticked toleft
andright
, andtextAlignment
is center to prevent long text can break the UI.
Notes
top
: layout theview1's topAnchor
to theview2's topAnchor
.horizontal
: layout theview1's leftAnchor
toview2's leftAnchor
andview1's rightAnchor
toview2's rightAnchor
.
(2)
-
circle
is the top curve. You can use an image instead. The circle haswidth
andheight
equal toUIScreen.main.bounds.width * 2
. It is bigger than the view so we can put its lower edge overlay on thecontainer
. -
Layout
circle
horizonal center to the view, so the circle looks balance. You can try align to left or right to see differences. -
The
circle
’s bottom edge will align to thelogo
center. A little bit difficult to understand. Thelogo
is sticked to the top, andcircle
is sticked to thelogo
. I set thecircle
sticked to thecontainer
’s top, but the view can’t auto layout. This way,container
can easy auto layout, we don’t need to care thecontainer
’s height.
Notes
square(value: CGFloat)
: set theview's width
equals toview's height
and equal tovalue
centerX
: stickview1's centerXAnchor
toview2's centerXAnchor
bottom
: layoutview1's bottomAnchor
toview2's bottomAnchor
.
(3)
logo
hasverticalSpacing
tolabel
and has 40px spacing. It means thelogo
’s top and thelabel
’s bottom has 40px spacing.
Notes
verticalSpacing
: layoutview1's topAnchor
toview2's bottomAnchor
(4), (5)
- Same to
codeTitle
andcodeLabel
,verticalSpacing
will make a space between them.
(6)
okButton
hasverticalSpacing
andbottom
. So keep in mind, the view can automatically calculate the height of the view.
Display Popup
The popup is ready to display. Let’s display it.
func show(in view: UIView) {
addSubviews(views: blackView, container)
blackView.fill(toView: self)
container.centerY(toView: self)
container.horizontal(toView: self, space: 24)
blackView.alpha = 0
UIView.animate(withDuration: 0.1, animations:
{ [weak self] in self?.blackView.alpha = 1 })
container.zoomIn(true)
view.addSubviews(views: self)
fill(toView: view)
}
-
We will display the popup inside the controller’s view. Rememeber 3 views:
blackView
,container
,self
. We will addblackView
andcontainer
toself
. And we addself
tocontainerView
. -
view.zoomIn(true)
will show the popup with a slight zoom animation.
Dismiss popup
Quite hard here for dismiss animation. The popup zooms in a little bit and zooms out to disappear.
@objc func dismiss() {
let initialValue: CGFloat = 1
let middleValue: CGFloat = 1.025
let endValue: CGFloat = 0.001
func fadeOutContainer() {
UIView.animate(withDuration: 0.2, animations:
{ [weak self] in self?.container.alpha = 0 })
}
func zoomInContainer() {
UIView.animate(withDuration: 0.05,
animations: { [weak self] in self?.container.scale(value: middleValue) })
}
func zoomOutContainer() {
UIView.animate(withDuration: 0.3, delay: 0.05, options: .curveEaseIn,
animations:
{ [weak self] in
self?.container.scale(value: endValue)
self?.blackView.alpha = 0
}, completion: { [weak self] _ in self?.removeFromSuperview() })
}
container.transform = container.transform.scaledBy(x: initialValue , y: initialValue)
fadeOutContainer()
zoomInContainer()
zoomOutContainer()
}
It is easy to understand
