A Bit about Firewall in Linux

Published Jan 04, 2018Last updated Jan 05, 2018
A Bit about Firewall in Linux

Introduction:

netfilter is a set of hooks inside the Linux kernel that allows kernel modules to register callback functions with the network stack. A registered callback function is then called back for every packet that traverses the respective hook within the network stack.

iptables is a firewall program used in all Linux flavors. With this program, the user can monitor and take actions on packet transfers to and from the Linux machine.

iptables is a generic table structure where you define the rulesets. Each rule within an iptable consists of a number of classifiers (iptables matches — condition) and one connected action (iptables target — action to be taken).

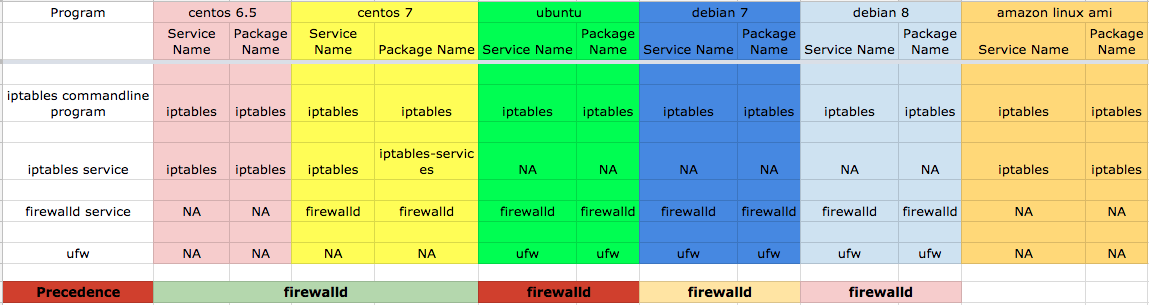

There are third party tools available that can add rules to iptables and the details can be found in following image.

iptables   os wise   Google Sheets.png

Terminology:

  • netfilter: This is a kernel level module that monitors packet transferring.

  • iptables: This can be interchanged between a firewall (command line) program and actual firewall rules table.

  • iptables-services: This is a package name for service that can be installed on centos 7.X. The same can be installed on centos 6.X and amazon linux ami with iptables package name. This uses the same syntax as iptables(command line program), but it stores its rules in /etc/sysconfig/ip[6]tables

  • firewalld: This is a firewall program available in centos >= 7 and can be installed on ubuntu and debian 8.

  • ufw: This is a firewall program usually found by default in debian flavors. This program is in sync functionally with iptables (command line program).

  • chain: Ip packets are divided into chains such as: INPUT, OUTPUT, FORWARD, PREROUTING, POSTROUTING.

  • INPUT: This is a chain for all incoming packets. We can apply rules and policies for this chain and they will be applied to all incoming packets.

  • OUTPUT: This is a chain for all outgoing packets. We can apply rules and policies for this chain and they will be applied to all outgoing packets.

  • FORWARD: This is a chain for all FORWARDED packets. We can apply rules and policies for this chain and they will be applied to all FORWARDED packets (packets can be forwarded to the same machine on another interface or can be forwarded to another machine).

  • policy: It is usually called default policy and can be either ACCEPT or DROP. It is applied after all rules are checked for matches. When a rule matches the packets, all of the other rules and policies are ignored.

  • ACCEPT: This is one of the default policies we can apply to chains. If set, it allows all packages except rules specified.

  • DROP: This is one of the default policies we can apply to chains. If set, it blocks all packages except rules specified.

  • zones: A zone defines the level of trust for network connections. Zones are applied only on incoming packets. This is a one to many relation, which means that a connection can only be part of one zone, but a zone can be used for many network connections.
    There are the following zones available.

    • drop: Any incoming network packets are dropped and there is no reply. Only outgoing network connections are possible.
    • block: Any incoming network connections are rejected with an icmp-host-prohibited message for IPv4 and icmp6-adm-prohibited for IPv6. Only network connections initiated within this system are possible.
    • public: For use in public areas. This works as ACCEPT all by default.
    • external: For use on external networks with masquerading enabled especially for routers. This works as ACCEPT all by default.
    • dmz: For computers in your demilitarized zone that are publicly-accessible with limited access to your internal network. This also works as ACCEPT all by default.
    • work: For use in work areas. This also works as ACCEPT all by default.
    • home: For use in home areas. This also works as ACCEPT all by default.
    • internal: For use on internal networks. This also works as ACCEPT all by default.
    • trusted: All network connections are accepted.

Commands:

iptables:

  • ip[6]tables -L [INPUT|OUTPUT|FORWARD]
    List all rules in the selected chain. If no chain is selected, all chains are listed.
[kishor@localhost ~]$ sudo iptables -L
  Chain INPUT (policy ACCEPT)
  target     prot opt source               destination
  ACCEPT     all  --  anywhere             anywhere            state RELATED,ESTABLISHED
  ACCEPT     icmp --  anywhere             anywhere
  ACCEPT     all  --  anywhere             anywhere
  ACCEPT     tcp  --  anywhere             anywhere            state NEW tcp dpt:ssh
  REJECT     all  --  anywhere             anywhere            reject-with icmp-host-prohibited

  Chain FORWARD (policy ACCEPT)
  target     prot opt source               destination
  REJECT     all  --  anywhere             anywhere            reject-with icmp-host-prohibited

  Chain OUTPUT (policy ACCEPT)
  target     prot opt source               destination
[kishor@localhost ~]$
  • ip[6]tables -P {INPUT|OUTPUT|FORWARD} {ACCEPT|DROP}
    Set the policy for the chain to the given target
[kishor@localhost ~]$ sudo iptables -P FORWARD DROP
[kishor@localhost ~]$ sudo iptables -L FORWARD
 Chain FORWARD (policy DROP)
 target     prot opt source               destination
 REJECT     all  --  anywhere             anywhere            reject-with icmp-  host-prohibited
[kishor@localhost ~]$
  • ip[6]tables -A {INPUT|OUTPUT|FORWARD} -p {tcp|udp} --dport {22|80|443} -j {ACCEPT|DROP}
    Set rule to accept or drop packets for chain on specific port
 [kishor@localhost ~]$ sudo iptables -A FORWARD -p tcp --dport 22 -j DROP
 [kishor@localhost ~]$ sudo iptables -L FORWARD
    Chain FORWARD (policy DROP)
    target     prot opt source               destination
    REJECT     all  --  anywhere             anywhere            reject-with icmp-host-prohibited
    DROP       tcp  --  anywhere             anywhere            tcp dpt:ssh
 [kishor@localhost ~]$
  • sudo iptables -A {INPUT|OUTPUT|FORWARD} -m string --hex-string "|0A|google|03|com" --algo bm -j ACCEPT
    Above is rule, when added to iptables will allow packets to and from Google domain.
  kishor@localhost:~$ sudo iptables -L
  Chain INPUT (policy ACCEPT)
  target     prot opt source               destination

  Chain FORWARD (policy ACCEPT)
  target     prot opt source               destination

  Chain OUTPUT (policy ACCEPT)
  target     prot opt source               destination
  ACCEPT     all  --  192.168.0.100        anywhere
  ACCEPT     icmp --  anywhere             anywhere             icmp echo-request
  ACCEPT     all  --  anywhere             anywhere             STRING match  "|0a636c6f7564726178616b036e6574|" ALGO name bm TO 65535
  kishor@localhost:~$
  • iptables -A {INPUT|OUTPUT|FORWARD} -p tcp -s XXX.XXX.XXX.XXX -j {ACCEPT|DROP}
  • ip6tables -A {INPUT|OUTPUT|FORWARD} -p tcp -s XXXX:XXXX:XXXX:XXXX:XXXX:XXXX -j {ACCEPT|DROP}
    Set rule to allow or drop connections from specific IPs.

firewalld:

  • firewall-cmd --get-default-zone
    Returns the default(fallback) zone set for all interfaces. Default zone is applied only if active zone is not set for interface. Default zone is permanent by default.
 kishor@localhost:~$ firewall-cmd --get-default-zone
 public
 kishor@localhost:~$
  • firewall-cmd --set-default-zone
    Sets default zone for all interface.
  kishor@MWPYT113:~$ firewall-cmd --set-default-zone=trusted
  success
  kishor@MWPYT113:~$ sudo firewall-cmd --get-default-zone
  trusted
  kishor@MWPYT113:~$
  • firewall-cmd --get-active-zones
    Returns active zones for each available interfaces. This take precedence over default zone.
   kishor@MWPYT113:~$ sudo firewall-cmd --get-active-zones
   internal
       interfaces: eht0
   trusted
       interfaces: br0
   block
       interfaces: virbr0
   kishor@MWPYT113:~$
  • sudo firewall-cmd [--permanent] --zone={trusted|public|dmz|drop|block|internal|home|work|external} --change-interface=<interface-name>
    Sets active zone for particular interface. If --permanent is added, result will persist across reboot. To make the permanent changes go into effect, you will have to reload the firewalld as below.
  kishor@MWPYT113:~$ sudo firewall-cmd --zone=trusted --change-interface=br0
  success
  kishor@MWPYT113:~$ sudo firewall-cmd --zone=internal --change-interface=eht0
  success
  kishor@MWPYT113:~$ sudo firewall-cmd --zone=block --change-interface=virbr0
  success
  kishor@MWPYT113:~$
  • firewall-cmd [--permanent] --add-rich-rule="rule family='{ipv4|ipv6}' source address='{192.168.0.11|fe80::dacb:8aff:fe28:298e}' {reject|accept}"
    Set rule to accept or reject connection from specific IP address.
 kishor@MWPYT113:~$ sudo firewall-cmd --add-rich-rule="rule family='ipv4' source address='192.168.0.11' reject"
 success
 kishor@MWPYT113:~$

UFW:

The default firewall configuration tool for Ubuntu is ufw. Developed to ease iptables firewall configuration, ufw provides a user friendly way to create an IPv4 or IPv6 host-based firewall.

  • Enable UFW

To turn UFW on with the default set of rules:

sudo ufw enable

To check the status of UFW:

sudo ufw status verbose

The output should be like this:

  kishor@localhost:~$ sudo ufw status verbose
  [sudo] password for kishor:
  Status: active
  Logging: on (low)
  Default: deny (incoming), allow (outgoing)
  New profiles: skip
  kishor@localhost:~$

You can also read the rules from /etc/default/ufw

  • Disable UFW

To disable ufw use:

sudo ufw disable

  • Allow and Deny (specific rules)

sudo ufw allow <port>/<optional: protocol>

example: To allow incoming tcp and udp packet on port 53

sudo ufw allow 53

example: To allow incoming tcp packets on port 53

sudo ufw allow 53/tcp

example: To allow incoming udp packets on port 53

sudo ufw allow 53/udp

* Deny

sudo ufw deny <port>/<optional: protocol>

example: To deny tcp and udp packets on port 53

sudo ufw deny 53

example: To deny incoming tcp packets on port 53

sudo ufw deny 53/tcp

example: To deny incoming udp packets on port 53

sudo ufw deny 53/udp

  • Delete Existing Rule

To delete a rule, simply prefix the original rule with delete. For example, if the original rule was:

ufw deny 80/tcp

  • Use this to delete it:

sudo ufw delete deny 80/tcp

sudo ufw allow <service name>

example: to allow SSH by name

sudo ufw allow ssh

  • Deny by Service Name

sudo ufw deny <service name>

example: to deny SSH by name

sudo ufw deny sshStatus

  • To check the status of UFW

sudo ufw status

if UFW was not enabled, the output would be:

sudo ufw status
Status: inactive

To allow port forwarding when UFW is running, follow the below steps:

sudo vim /etc/default/ufw

Set the default forward policy to ACCEPT, DROP or REJECT. Please note that if you change this you will most likely want to adjust your rules
DEFAULT_FORWARD_POLICY="ACCEPT".
