Learn Rest API using Express.js and MySQL DB

Express.js using MySQL DB Tutorial

Tools:
Text Editor:

• Visual Studio Code
  Node.js
• Installation:
  https://nodejs.org/en/download/

Creating first Node.js (Express) API:

Create a folder for your app

• $ mkdir firtApp
  On terminal/commandline go to the folder created from previous step
• $ cd firstApp
  Initialize node project :
• $ npm init
  To avoid question use flags;
• $ npm init –yes
  Install express framework, mySql, and body-parser
• $ npm install express –save (Express Framework)
• $ npm install mysql –save (for connecting to DB)
• $ npm install body-parser
  o This is a node.js middleware for handling JSON, Raw, Text and URL encoded form data.
  Server setup:
  nodemon will help us to keep track of changes to our application by watching changed files and automatically restart the server.
  $ npm install --save-dev nodemon

Create a file server.js

• $ touch server.js
• Open server.js file and type code below:
  var express = require('express'),
  app = express(),
  port = process.env.PORT || 3000;

app.listen(port);

console.log('todo list RESTful API server started on: ' + port);

• this will run your app on the port you have provided when you start the server

MySQL DB Setup:
Prerequisite:
Install mySQL Community Edition

Create a DB:

CREATE DATABASE mydb;

Create table:

CREATE TABLE IF NOT EXISTS `tasks` (
  `id` int(11) NOT NULL,
  `task` varchar(200) NOT NULL,
  `status` tinyint(1) NOT NULL DEFAULT '1',
  `created_at` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP
);

ALTER TABLE `tasks` ADD PRIMARY KEY (`id`);
ALTER TABLE `tasks` MODIFY `id` int(11) NOT NULL AUTO_INCREMENT;

Populate the table with sample data:

INSERT INTO `tasks` (`id`, `task`, `status`, `created_at`) VALUES
(1, 'Find bugs', 1, '2016-04-10 23:50:40'),
(2, 'Review code', 1, '2016-04-10 23:50:40'),
(3, 'Fix bugs', 1, '2016-04-10 23:50:40'),
(4, 'Refactor Code', 1, '2016-04-10 23:50:40'),
(5, 'Push to prod', 1, '2016-04-10 23:50:50');

Create new folder named app and inside app create additional folders named controller, model, routes.

• Inside controller create new file named appController.js
• Inside model create new file named appModel.js
• Inside routes create new file named approutes.js

Structure would look like below diagram:

Setting up the routes

Routing refers to determining how an application responds to a client request for a specific endpoint, which is a URI (or path) and a specific HTTP request method (GET, POST, PUT,PATCH,DELETE)

Each of our routes has different route handler functions, which are executed when the route is matched.

Below we have defined two basic routes

• /tasks
• /tasks/taskId
• with different methods
  ‘/tasks’ has to methods(‘GET’ and ‘POST’), while ‘/tasks/taskId’ has GET, PUT and DELETE.

As you can see, we required the controller so each of the routes methods can call it’s respective handler function.
To do this, open the appRoutes.js file in the route folder and paste the code snippet below into

'use strict';
module.exports = function(app) {
  var todoList = require('../controllers/todoListController');

  // todoList Routes
  app.route('/tasks')
    .get(todoList.list_all_tasks)
    .post(todoList.create_a_task);

   app.route('/tasks/:taskId')
    .get(todoList.read_a_task)
    .put(todoList.update_a_task)
    .delete(todoList.delete_a_task);
    };

Let’s create a db connection wrapper, this will allow you to create connection on db which stored on a single file and can be reuse by other modules.

To do this create a new file name db.js under models folder
$ touch db.js

Paste the code snippet below:

'user strict';

var mysql = require('mysql');

//local mysql db connection
var connection = mysql.createConnection({
    host     : 'localhost',
    user     : 'root',
    password : '',
    database : 'mydb'
});

connection.connect(function(err) {
    if (err) throw err;
});

module.exports = connection;

Setting up model:

We can now reuse our db instance to other modules
Now create are Task object and provide function like creating new task, get all task, get task by id, update task by id and delete task by id.

Open appModel.js and paste code snippet below:

'user strict';
var sql = require('./db.js');

//Task object constructor
var Task = function(task){
    this.task = task.task;
    this.status = task.status;
    this.created_at = new Date();
};
Task.createTask = function (newTask, result) {
        sql.query("INSERT INTO tasks set ?", newTask, function (err, res) {

                if(err) {
                    console.log("error: ", err);
                    result(err, null);
                }
                else{
                    console.log(res.insertId);
                    result(null, res.insertId);
                }
            });
};
Task.getTaskById = function (taskId, result) {
        sql.query("Select task from tasks where id = ? ", taskId, function (err, res) {
                if(err) {
                    console.log("error: ", err);
                    result(err, null);
                }
                else{
                    result(null, res);

                }
            });
};
Task.getAllTask = function (result) {
        sql.query("Select * from tasks", function (err, res) {

                if(err) {
                    console.log("error: ", err);
                    result(null, err);
                }
                else{
                  console.log('tasks : ', res);

                 result(null, res);
                }
            });
};
Task.updateById = function(id, task, result){
  sql.query("UPDATE tasks SET task = ? WHERE id = ?", [task.task, id], function (err, res) {
          if(err) {
              console.log("error: ", err);
                result(null, err);
             }
           else{
             result(null, res);
                }
            });
};
Task.remove = function(id, result){
     sql.query("DELETE FROM tasks WHERE id = ?", [id], function (err, res) {

                if(err) {
                    console.log("error: ", err);
                    result(null, err);
                }
                else{

                 result(null, res);
                }
            });
};

module.exports= Task;

In here we require db.js to import our connection instance to mysql db and perform mysql queries.

Setting up the controller

Open appController.js file with your text edito and let’s deep dive into coding.
In this controller, we would be writing five(5) different functions namely: list_all_tasks, create_a_task, read_a_task, update_a_task, delete_a_task. We will export each of the functions for us to use in our routes.
Each of these functions uses different Task methods we created previously in appModel.js such as getTaskById, getAllTask, updateById, createTask and remove.

Open appController.js and paste code snippet below

'use strict';

var Task = require('../model/appModel.js');

exports.list_all_tasks = function(req, res) {
  Task.getAllTask(function(err, task) {

    console.log('controller')
    if (err)
      res.send(err);
      console.log('res', task);
    res.send(task);
  });
};



exports.create_a_task = function(req, res) {
  var new_task = new Task(req.body);

  //handles null error
   if(!new_task.task || !new_task.status){

            res.status(400).send({ error:true, message: 'Please provide task/status' });

        }
else{

  Task.createTask(new_task, function(err, task) {

    if (err)
      res.send(err);
    res.json(task);
  });
}
};


exports.read_a_task = function(req, res) {
  Task.getTaskById(req.params.taskId, function(err, task) {
    if (err)
      res.send(err);
    res.json(task);
  });
};


exports.update_a_task = function(req, res) {
  Task.updateById(req.params.taskId, new Task(req.body), function(err, task) {
    if (err)
      res.send(err);
    res.json(task);
  });
};


exports.delete_a_task = function(req, res) {


  Task.remove( req.params.taskId, function(err, task) {
    if (err)
      res.send(err);
    res.json({ message: 'Task successfully deleted' });
  });
};

Earlier on, we had a minimal code for our server to be up and running in the server.js file.
In this section we will be connecting our handlers(controllers), database, the created models, body parser and the created routes together.
Open the server.js file created awhile ago and follow the following steps to put everything together.
Essentially, you will be replacing the code in your server.js with the code snippet from this section

• use bodyParser Parse incoming request bodies in a middleware before your handlers, available under the req.body property.
  It exposes various factories to create middlewares. All middlewares will populate the req.bodyproperty with the parsed body, or an empty object ({}) if there was no body to parse (or an error was returned).
• Register our created routes in the server
  On Server.js would have code below:

const express = require('express'),
  app = express(),
  bodyParser = require('body-parser');
  port = process.env.PORT || 3000;


const mysql = require('mysql');
// connection configurations
const mc = mysql.createConnection({
    host: 'localhost',
    user: 'root',
    password: '',
    database: 'mydb'
});

// connect to database
mc.connect();

app.listen(port);

console.log('API server started on: ' + port);

app.use(bodyParser.urlencoded({ extended: true }));
app.use(bodyParser.json());

var routes = require('./app/routes/approutes'); //importing route
routes(app); //register the route

Start mySQL db sever
Start server.js
$ nodemon sever
– This will start server and any changes made to the code will restart the server
Or
$ node server.js

• This will start server.js
  Testing via Postman

Prerequisite:
Install Postman
https://app.getpostman.com/app/download/win64?_ga=2.255006414.779778692.1531359773-1848618340.1531359773
Now that everything is now connected, let’s test each of the routes and the respective methods.
Open your postman and type:
1.
http://localhost:3000/tasks in the enter request URL section and press enter.

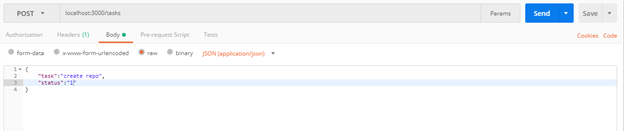

2. On the same address, change the method to POST, click body and select “raw” and on the drop
   menu choose application/json.

on body provide task details:

i.e:

{
“task”:”create repo”,
“status”:”1”
}

After this, click on send button.
This should give you a response 200 ok

..
