Ever have a tough bug in production that doesn't show up on your machine even after having parity with pretty much everything? Or perhaps you don't have much of a choice, but to work directly on the server? Do you end up using print or a logger and just haphazardly plopping those in in different places hoping to see what's going on?

I'll present to you remote debugging. Remote debugging allows you to interactively debug code that's not on your machine line-by-line. It's as others have described a "God-send" into debugging tough problems. You'll get to the root of the problem much quicker with it and it's extremely useful when you need to reverse-engineer a project.

We'll be using a python package to have a common API to work with.

Requirements

• Visual Studio Code or Pycharm Professional
• Either ptvsd or pydevd_pycharm dependency installed

Installing

pip install git+ssh://git@github.com/2upmedia/debugger_helper

How it works

There's five parts to remote debugging with Python:

1. the server can communicate with your workstation
2. you have the corresponding IDE package installed on the server
3. your IDE is configured for remote debugging correctly
4. you run the remote debugging configuration in your IDE at the right
   time
5. you have the same code that's on the server on your workstation

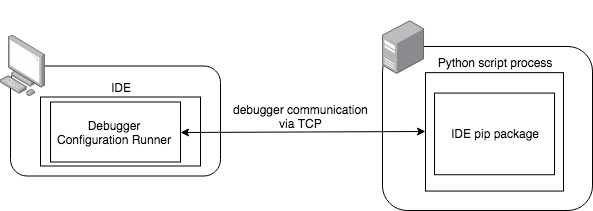

There's a debug package for each IDE that serves as the debugger on the
server. It communicates back and forth between the server and the IDE.

You need to make sure that the server can communicate with your
workstation. This is an essential part of remote debugging because
there are TCP packets sent back and forth between the server and the
IDE. Those packets communicate things like where the breakpoints are set
and information about the current stack and variables. This is
essentially how all remote debuggers work.

The easiest way to allow a TCP line-of-communication that bypasses any
firewall issues is by port forwarding. This is possible with ssh or
putty.

With ssh just issue ssh -R LOCAL_PORT:IP:REMOTE_PORT user@host for a
reverse port forward and ssh -L LOCAL_PORT:IP:REMOTE_PORT user@host
for a local port forward. Typically you'd use 127.0.0.1 for the IP and
the same port numbers, for example,
ssh -L 9000:127.0.0.1:9000 user@host. A local port forward means that
a socket is allocated and listening on your local machine and forwards
the TCP connection to the specified remote port on the server. A reverse
port forward means that a socket is allocated and listening on your
remote machine and forwards the TCP connection to the specified local
port on your machine. Visual Studio Code uses local port forwarding
while PyCharm needs reverse port forwarding.

To ensure that the server can communicate with your computer you could
run the following commands on the server:

$ openssl s_client -connect 127.0.0.1:9000
connect_to 127.0.0.1 port 9000: failed.
CONNECTED(00000004)

If you have telnet installed you could also try...

$ telnet 127.0.0.1 9000
Trying 127.0.0.1...
Connected to localhost.

What you're looking for is CONNECTED for openssl. For telnet, if it
doesn't exit telnet and doesn't get an error after some time, then that
means it's connected.

In terms of the setup, that means that for PyCharm you need to run the
remote IDE configuration first before running your python script while
for Visual Studio Code you run it after your python script.

The remote debugger IDE settings define the host, port, and path
mappings. The path mapping maps the folder path from the server to the
folder path on your local machine so that the debugger can pick up the
correct file.

There are three environment variables that the debugger_helper module
uses:

• START_DEBUGGER
• DEBUGGER_HOST (default 127.0.0.1)
• DEBUGGER_PORT (default 9000)

The START_DEBUGGER environment variable should be set to any non-empty
value such as 1 right before starting the python script you'd like to
debug.

If everything is set up correctly the debugger should immediately stop
at your breakpoint. If this is not the case, double check every step.

Setting up Visual Studio Code

• install ptvsd on the server
• make sure pydevd-pycharm isn't installed as it conflicts with
  ptvsd
• add a local port forward from your machine to the server via ssh (or
  putty)
• add the following to somewhere in the top-most part of your python
  project. For instance, if it's a Flask app with an app.py file you
  might place it right at the top after your imports.

import ptvsd
debugger_helper.attach_vscode(lambda host, port: ptvsd.enable_attach(address=(host, port), redirect_output=True))

• go to the debug panel, add configuration, click on Python, then
  Remote Attach, set the host to 127.0.0.1, port to 9000 (or the
  port to match the port forwarding and the DEBUGGER_PORT
  environment variable). You should see those values in launch.json.
• for remoteRoot, set it to the absolute path of the folder
  containing your python script on the server. For instance, maybe
  it's residing in /www/pythonapp/. You'd use that for remoteRoot.
• set a breakpoint where you'd like the debugger to stop
• Run the python script $ START_DEBUGGER=1 python app.py and waiting
  until it says it's ready to connect to the debugger
• Run the Remote Attach configuration in Visual Studio Code.

Setting up Pycharm

• install pydevd_pycharm on the server
• add a reverse port forward from the server to your machine via ssh
  (or putty)
• add a Run Configuration for Python Remote Debug. Set the host to
  127.0.0.1 and port 9000. Save it.
• in the configuration and path mapping field add a mapping for the
  absolute path of the project root to the absolute path of the same
  project root, but on the server
• add the following to somewhere in the top-most part of your python
  project. For instance, if it's a Flask app with an app.py file you
  might place it right at the top after your imports.

import pydevd_pycharm
debugger_helper.attach_pycharm(lambda host, port: pydevd_pycharm.settrace(host, port=port, stdoutToServer=True, stderrToServer=True))

• set a breakpoint where you'd like the debugger to stop. You may set
  pydevd_pycharm.settrace(..., suspend=False) if you'd like to avoid
  the debugger from stopping on the line that settrace is on.
• Run the Remote Debug configuration in PyCharm.
• Run the python script $ START_DEBUGGER=1 python app.py

Restart server on file changes with watchgod

One of the challenges with remote debugging is that by default if you make code changes, they will not be reflected immediately on the server. If you're not aware of that you'll be debugging an older version of your code and seeing results that don't correlate to the changes that you made.

What you need to do is to restart the python process when a python file is updated. We can do this automatically with watchgod.

So lets go through that.

• install watchgod
• create a second script that will call your main python script that turns on the debugger. It should look something like this:

# debug.py
import subprocess


def main():
    subprocess.call(['python', 'app.py']) # that's the same as the shell command ``$ python app.py``

• Run the python script with watchgod $ START_DEBUGGER=1 watchgod debug.main
• Now in your IDE, upload the file

Only turn on the debugger for certain routes in Flask (only supported with PyCharm)

Maybe you want to turn on the debugger only when you'd like to?

Here's an example of how to do that in Flask. Unfortunately, the IDE packages don't allow disabling the debugger once it's been turned on so we're going to have to brute-force it by killing the python process. That means that you'll need to manually start it again or you could use something like gunicorn that'll spawn a new process after it sees that the old process gets killed.

Follow along with me.

• create a function that'll check a query parameter and then trigger
  the debugger to start
• notice the call_immediately=True argument in attach_pycharm.
  That allows you to trigger the debugger based on your set of rules.
• call this function in the body of the route

from flask import Flask, request

is_debugger_enabled = False


def attach_debugger():
    global is_debugger_enabled
    if request.args.get('START_DEBUGGER', ''):
        debugger_helper.attach_pycharm(lambda host, port: pydevd_pycharm.settrace(host, port=port, stdoutToServer=True, stderrToServer=True, suspend=False), call_immediately=True)
        is_debugger_enabled = True
    elif is_debugger_enabled:
        print('Trying to disable debugger that was enabled. Killing process to start a fresh one.')
        sys.exit(1)


@app.route("/")
def hello():
    attach_debugger()
    message = "Hello Worlddd!"
    return message

• follow the instructions for Setting up Pycharm above
• call the URL in the browser with the query parameter
  START_DEBUGGER appended to it. http://IP:5000/?START_DEBUGGER=1

Savor the taste of remote debugging

Now that you've learned how to do remote debugging, go ahead and get your hands dirty. Once you've used it, you'll be asking yourself why you didn't use it earlier.

Happy debugging!
